Machine:

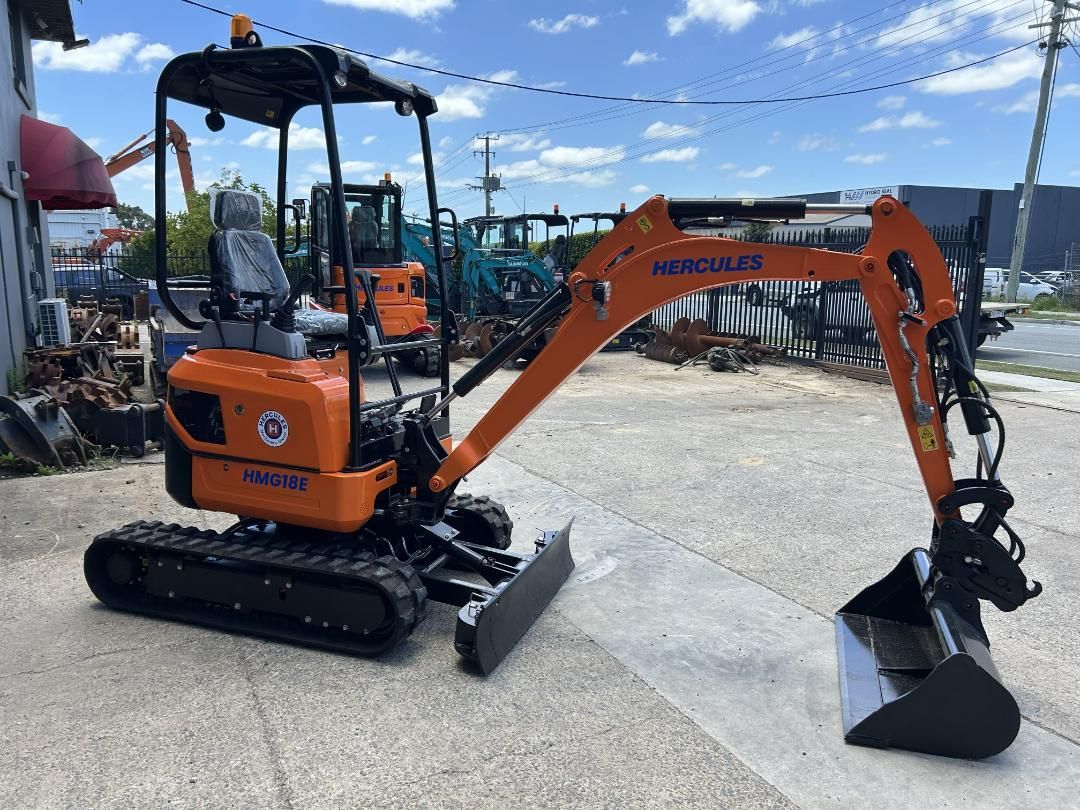

HMG18E Mini Excavator
Model:
HMG18E
Year:
2026
Machinery Category:
Excavator
Audiences:
Civil Construction, Small Scale
Standard Bucket Capacity:
0.04 m³
Boom Length:
1,830 mm
Arm Length:
950 mm
Max Travel Speed:
2.3 / 4.0 km/h
Max Swing Speed:
10 rpm
Grade Ability:
35° (70%)
Ground Pressure:
25 kPa
Max Traction Force:
15.6 kN
Engine Model:
Kubota D902-E4B-CBH-1
Rated Power:
11.8 kW / 2,300 rpm
Max Torque:
44.5 N.m @ 1,800 rpm
Displacement:
0.898 L
Emission Standard:
EPA Tier 4F / EU Stage V
Max Flow (Total):
64.4 L/min
Max Working Pressure:
21.6 MPa
Max Pilot Pressure:
3.9 MPa
Max Arm Digging Force:
8.8 kN (ISO)
Max Bucket Digging Force:
15.2 kN (ISO)
Hydraulic Oil Tank:
18 L
Track Width:
230 mm
Track Shoes:
37 per side
Carrier Rollers:
2 per side
Track Rollers:
3 per side
