• Specs

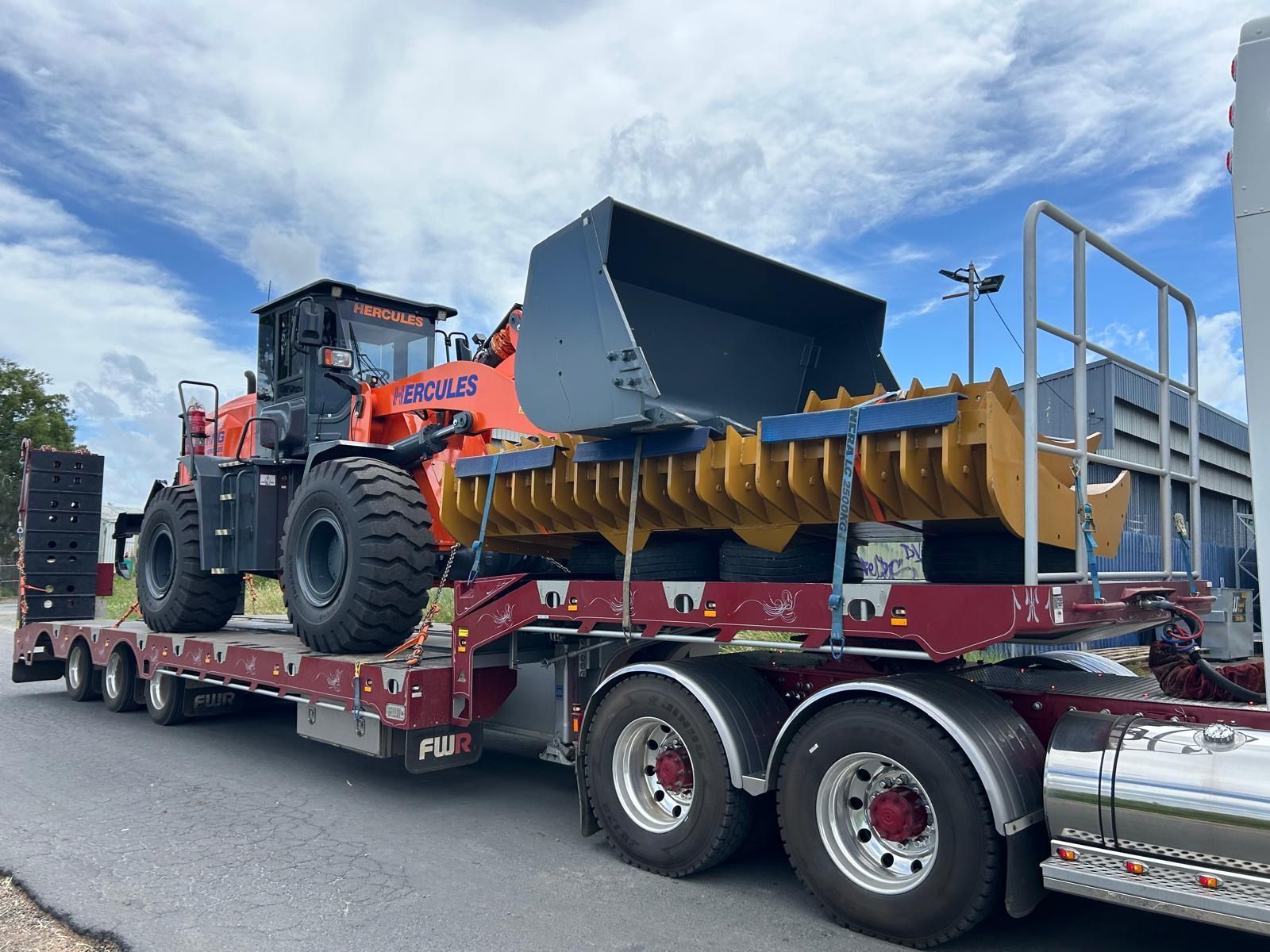

  Machine: H1800C-2 Wheel Loader

  Model: H1800C-2

  Year: 2026




  Performance & Operation:

  • Bucket Capacity: 3.6 m³
  • Rated Payload: 5,500 kg
  • Traction Force: 165 ± 3 kN
  • Breakout Force: 162 ± 5 kN
  • Travel Speed – Forward: 7 / 13.7 / 24.0 km/h (3 gears)
  • Travel Speed – Reverse: 7 / 14 / 26 km/h (3 gears)
  • Overall Dimensions (L×W×H): 8,270 × 3,100 × 3,400mm




  Engine:

  • Make / Model: Cummins B6.7
  • Rated Power: 162 kW /2,200 rpm
  • Maximum Torque: 1,186 N.m @ 1,300 rpm
  • Displacement: 6.7 L (6cylinders)
  • Bore × Stroke: 107 mm × 124 mm
  • Air Cleaner: Three-stage air cleaner
  • Alternator: 70 A
  • Battery: 2 × 24 V / 120 Ah
  • Starting Motor: 7.8 kW




  Brake System:

  • Service Brake: Full hydraulic wet brake
  • Setting Pressure: 0.70–0.78 MPa
  • Parking Brake: Hydraulic actuated drum brake
  • Emergency Brake: Hydraulic actuated drum brake




  Dimensions:

  • Overall Length (with bucket): 8,320 mm
  • Overall Width over Bucket: 3,000 mm
  • Height to Top of Cab: 3,400 mm
  • Overall Height – Bucket Raised: 6,560 mm
  • Bucket Pin Height at Max Lift: 4,164 mm
  • Dump Clearance at Max Lift (45°): 3,100 mm
  • Wheelbase: 3,350 mm
  • Ground Clearance: 398 mm
  • Min Turning Radius over Tires: 6,650 mm
  • Min Turning Radius over Bucket: 7,386 mm
