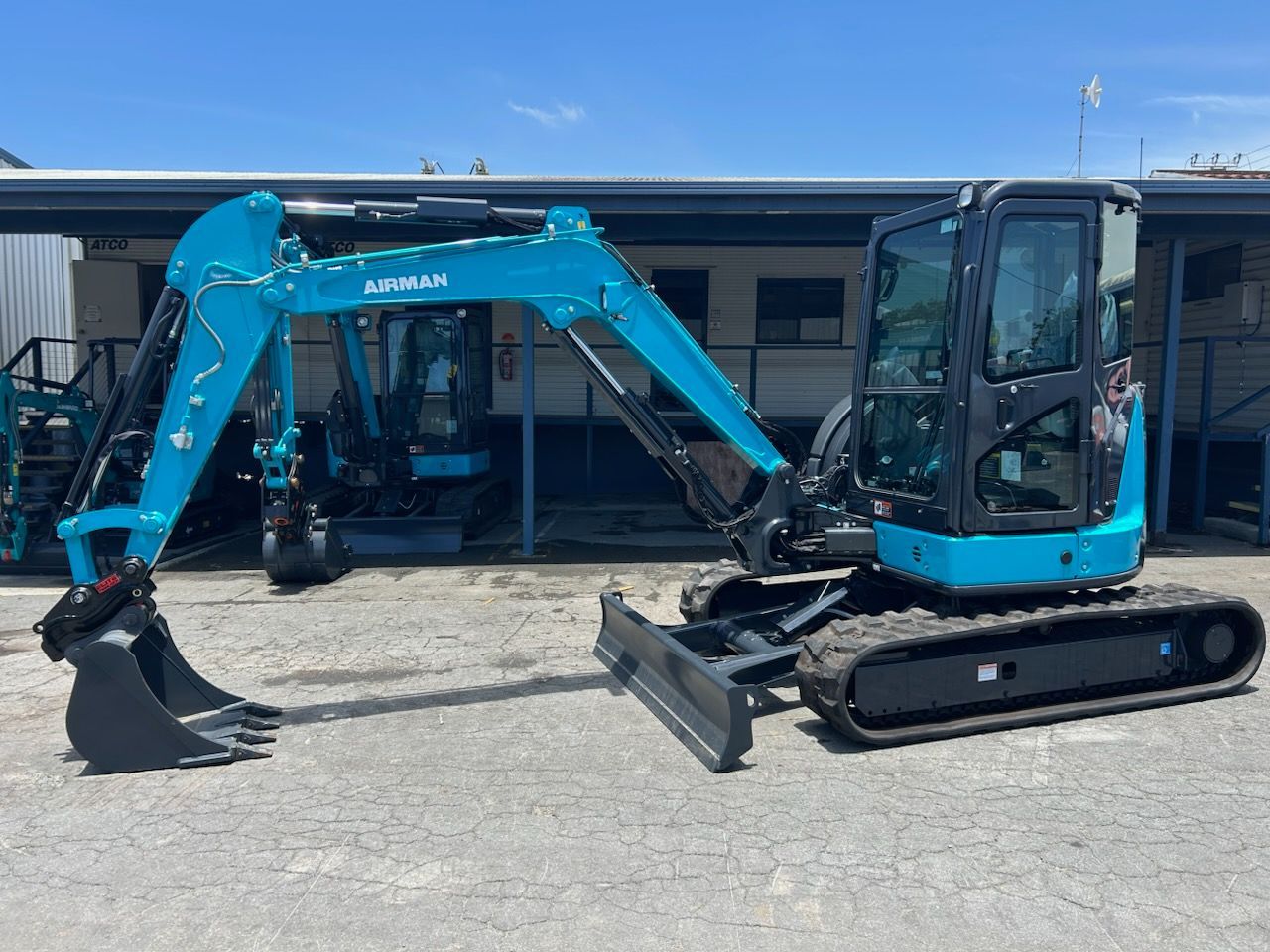

The Airman AX48UG-6A - CANOPY is a zero-tail swing mini excavator in Airman’s “AX-u-6A” series. “Zero tail swing” means the rear of the upper house does not extend beyond its track width during full rotation, making it more maneuverable in tight or constrained job sites.

$0.00

  • Specs

    ax Digging Depth: 3,630 mm

    Max Digging Reach: 6,060 mm

    Max Dumping Height: 4,140 mm

    Track Width: 400 mm

    Transport Length: 5.39 m

    Transport Width: 1.96 m

    Transport Height: 2.53 m

    Tear-out Force: 32.1 kN

    Safety Features: ROPS/OPG capabilities, operator lever locks

    Frame: D-shaped frame for impact protection

    Undercarriage: Welded track frame, tractor-type

    Air Conditioning: Available (in cabin versions)

    Additional details

    Model Series: AX-u

    Hydraulic System: Features a variable displacement axial piston pump and a gear pump.

    Travel: Driven by 2-speed axial piston motors.

    Swing: Features an axial piston motor with a planetary reduction gear.

    Operating Weight: 4,540 kg

    Engine: Yanmar 4TNV88

    Engine Power: 28.2 kW

    Includes buckets ranging from 350mm, 450mm, 650mm, 1200mud & Ripper

Out of Stock
AX48UG-6A - CANOPY
