The AX38U-6A is a mid-sized zero-tail swing mini excavator in Airman’s “AX-u-6A” series. “Zero tail swing” means the rear of the machine doesn’t extend past the width of its tracks when a full 360° swing is made, which is helpful in tight spaces.

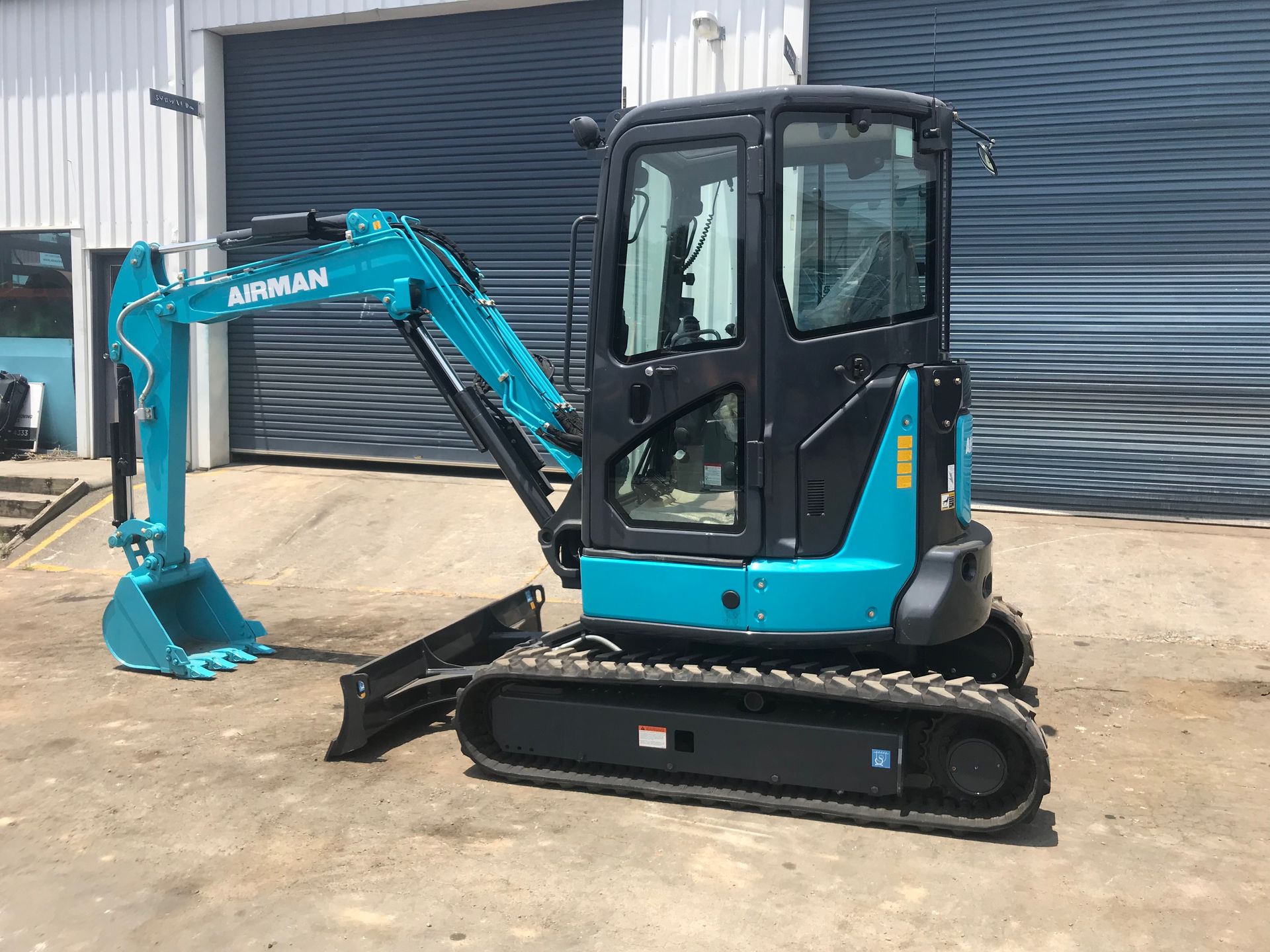

Airman AX38u-6A

$0.00

  • Specs

    Engine - Yanmar 3TNV88 (3-cylinder, water-cooled, direct injection)

    Rated Power ~ 21.2 kW(≈ 28.4 hp) at 2,400 rpm

    Displacement ~ 1.642 L

    Operating Weight ~ 3,960 kg(for a standard configuration with 300 mm rubber tracks + cabin)

    Transport / Overall Dimensions - Length: ~4.76 m; Width: ~1.74 m; Height: ~2.48 m

    Track Width (Shoe Width) - 300 mm shoes (rubber or steel depending)

    Bucket Capacity (Max / Std) - Standard ~ 0.10-0.11 m³ ISO heaped for the AX38U-6A with its usual arm/boom configuration.

    Max Digging Depth ~ 3.46 m

    Max Reach (Horizontal) ~ 5.52 m

    Tear-out / Bucket Digging Force ~ 27.1 kN

Out of Stock
